N-SERIES

Type

Liftmounted

Tank Capacity

105 (400 ltrs) / 155 (600 ltrs) / 210 (800 ltrs)

Boom Width

14 ft. (4 m) / 20 ft. (6 m) / 26 ft. (8 m) / 33 ft. (10 m) / 40 ft. (12 m)

Boom Types

MB, SB

N-SERIES

Type

Liftmounted

Tank Capacity

105 (400 ltrs) / 155 (600 ltrs) / 210 (800 ltrs)

Boom Width

14 ft. (4 m) / 20 ft. (6 m) / 26 ft. (8 m) / 33 ft. (10 m) / 40 ft. (12 m)

Boom Types

MB, SB

Proven design and quality

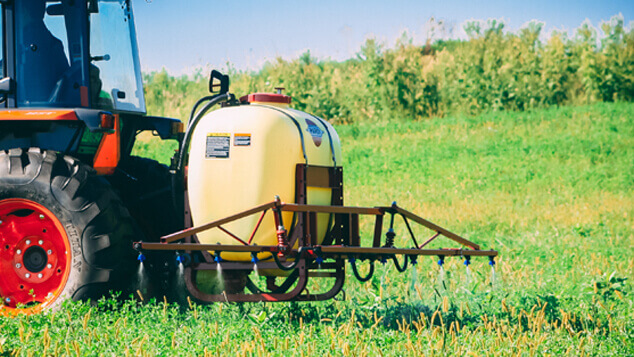

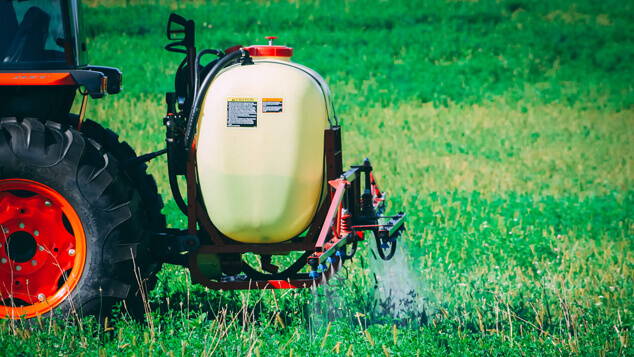

The HARDI N-SERIES sprayer is one of the most versatile sprayers ever built. The N-SERIES is used by professional plant growers all over the world. It finds its use in traditional farming, horticulture, orchards, vineyards and on grasslands.

The N-SERIES is a durable and well proven sprayer that offers far more features and options than you would expect from a sprayer in this class.


Break-away

All booms have an adjustable spring loaded break-away to protect the boom in case of accidental encounter with an obstacle in the field.


No dripping from nozzles

The single SNAP-FIT nozzle holders have a built-in non-drip diaphragm check valve. The non-drip valve ensures no dripping from the nozzles when the main on/off is closed. The SNAP-FIT system furthermore ensures that all nozzles are in the correct position. A large range of high quality HARDI nozzles is available to suit any spray task.


SB boom

The  SB booms are directly mounted to the frame. A mechanical and hydraulic boom lift makes the height adjustment easy and safe.


MB boom

The 40 ft. MB boom features a trapeze suspension for self-stabilisation and prolonged boom life. On the SB booms they trapeze suspension is an optional.


Get the N-SERIES brochure

See all the information about the N-SERIES including full specifications, in-depth information  and much more!

Download your N-SERIES brochure

Your local HARDI dealer

HARDI Dealer network of more than 1500 locations around the world ensures quality, service and spareparts to farmers in more than 100 countries.

Find your local HARDI Dealer

Specifications

Tank size, galBoom modelWidthPump modelPump capacitySize, L x W x HWeight
105 (400 ltrs)SB14 ft. (4 m)603 / 1203 / 130310/20/30 gpm (42/99/114 l/min)55x75x80 in. (140 x 190 x 170 cm)320 lbs (145 kg)
105 (400 ltrs)SB20 ft. (6 m)603 / 1203 / 130310/20/30 gpm (42/99/114 l/min)55x75x80 in. (140 x 190 x 170 cm)331 lbs (150 kg)
105 (400 ltrs)SB26 ft. (8 m)603 / 1203 / 130310/20/30 gpm (42/99/114 l/min)55x75x83 in. (140x190x210 cm)334 lbs (151.5 kg)
155 (600 ltrs)SB14 ft. (4 m)603 / 1203 / 130310/20/30 gpm (42/99/114 l/min)55x75x80 in. (140 x 190 x 170 cm)350 lbs (159 kg)
155 (600 ltrs)SB20 ft. (6 m)603 / 1203 / 130310/20/30 gpm (42/99/114 l/min)55x75x80 in. (140 x 190 x 170 cm)362 lbs (164 kg)
155 (600 ltrs)SB26 ft. (8 m)603 / 1203 / 130310/20/30 gpm (42/99/114 l/min)55x75x83 in. (140x190x210 cm)375 lbs (170 kg)
155 (600 ltrs)SB33 ft. (10 m)1203 / 130320/30 gpm (99/114 l/min)55x75x83 in. (140x190x210 cm)415 lbs (188 kg)
155 (600 ltrs)MB40 ft. (12 m)1203 / 130320/30 gpm (99/114 l/min)59x82x87 in. (140x190x220 cm)520 lbs (235 kg)
210 (800 ltrs)SB14 ft. (4 m)603 / 1203 / 130310/20/30 gpm (42/99/114 l/min)55x75x80 in. (140 x 190 x 170 cm)390 lbs (177 kg)
210 (800 ltrs)SB20 ft. (6 m)603 / 1203 / 130310/20/30 gpm (42/99/114 l/min)55x75x80 in. (140 x 190 x 170 cm)400 (181 kg)
210 (800 ltrs)SB26 ft. (8 m)603 / 1203 / 130310/20/30 gpm (42/99/114 l/min)55x75x83 in. (140x190x210 cm)419 (190 kg)
210 (800 ltrs)SB33 ft. (10 m)1203 / 130320/30 gpm (99/114 l/min)55x75x83 in. (140x190x210 cm)459 (208 kg)
210 (800 ltrs)MB40 ft. (12 m)1203 / 130320/30 gpm (99/114 l/min)59x82x87 in. (140x190x220 cm)576 (261 kg)

Show full specifications
